Rail Profile Dimensions

ItemWeight (kg/m)Rail Height (mm)Head Width (mm)Base Width (mm)Web Thickness (mm)Length (mm)
A4522.155451252412000
A5531.865551503112000
A6543.175651753812000

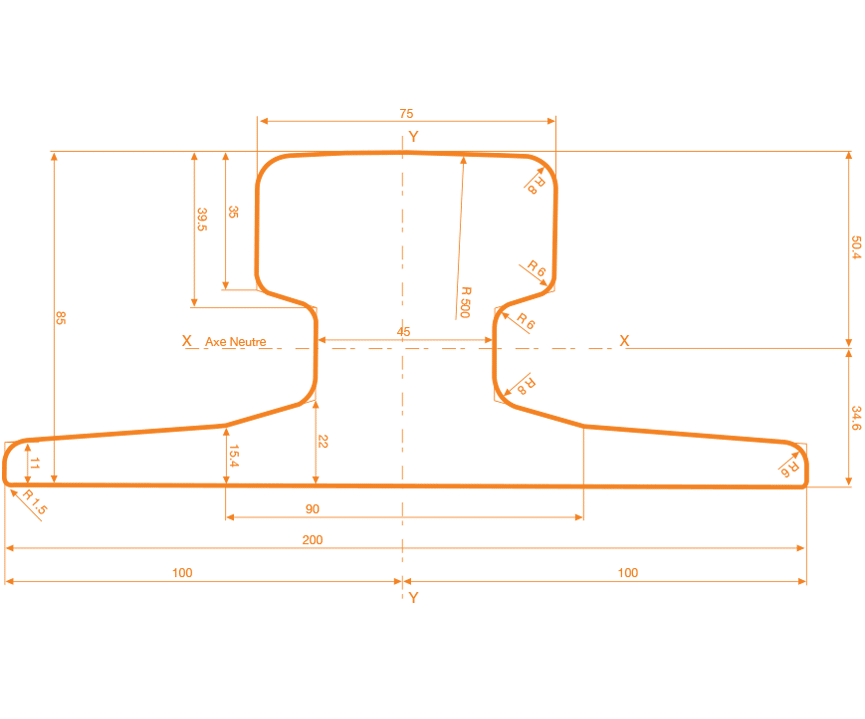

A7556.285752004512000

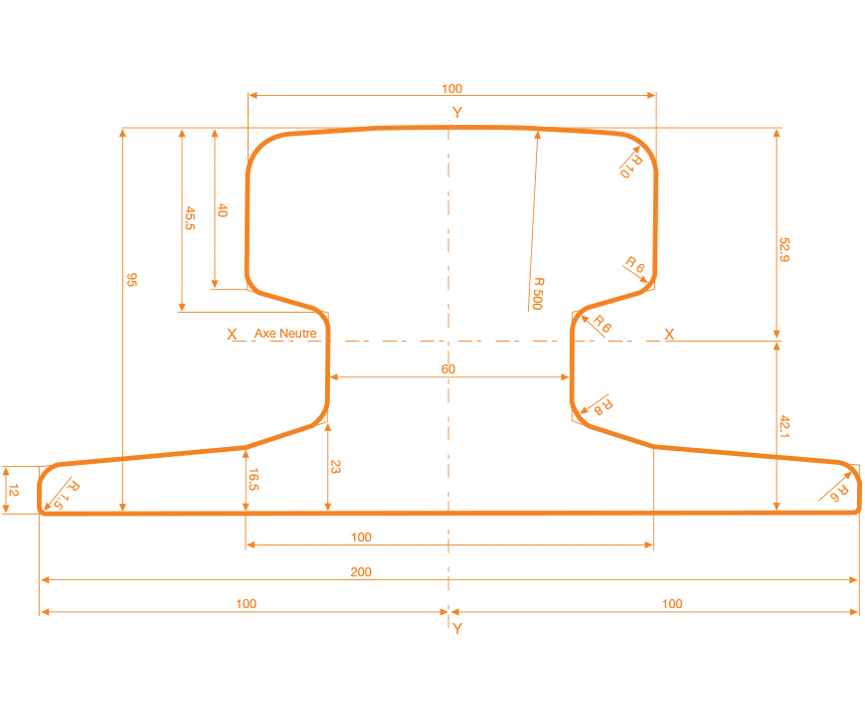

A10074.3951002006012000

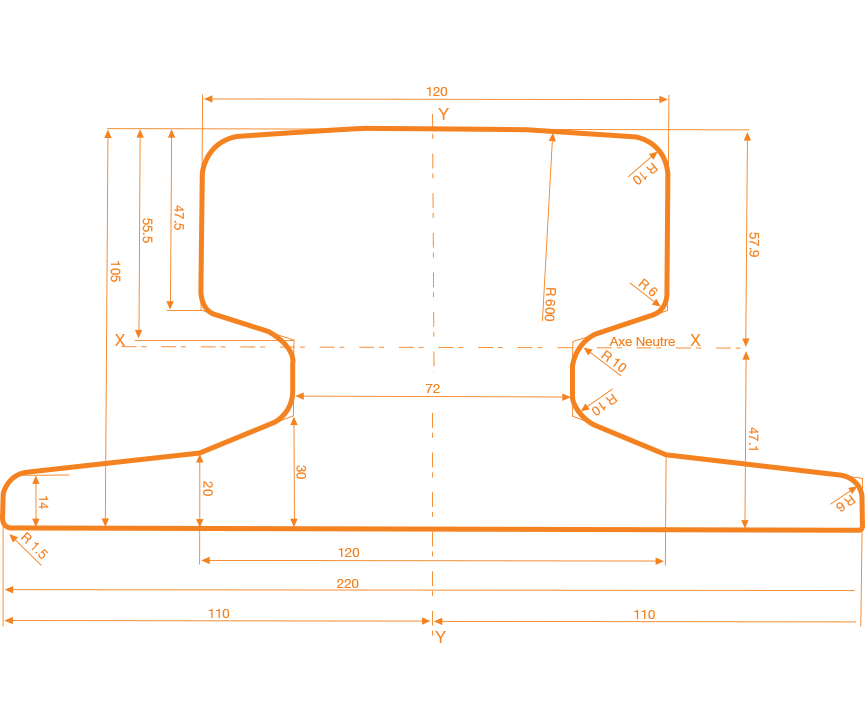

A120100.01051202207212000

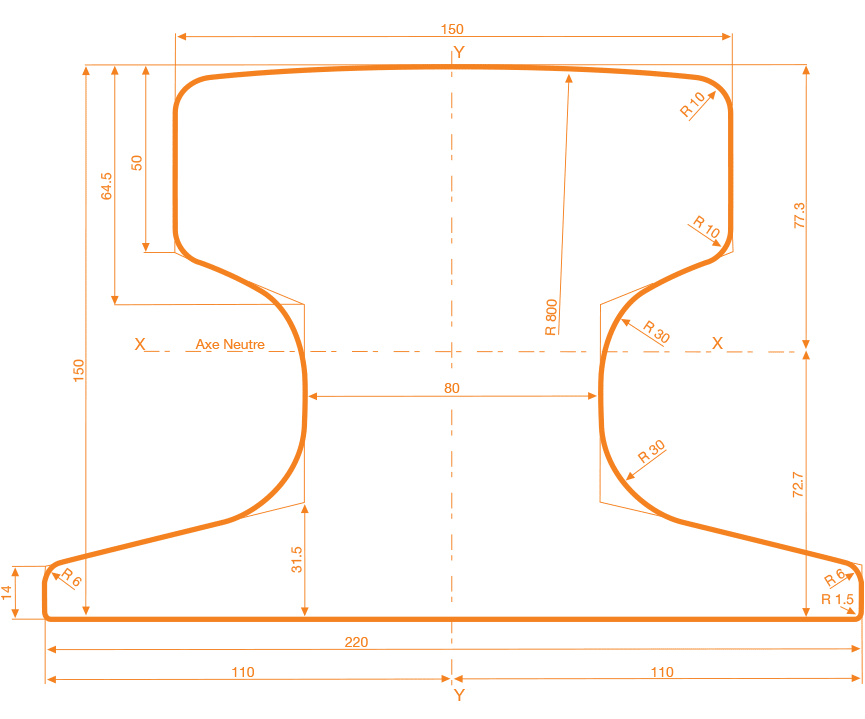

A150150.31501502208012000

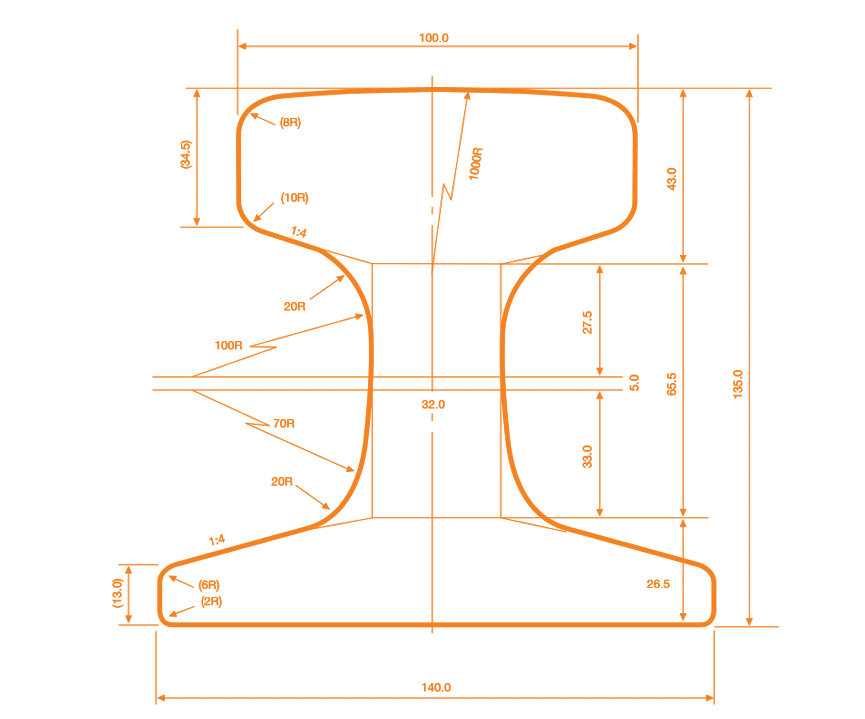

CR7373.3135100140326000 – 12000

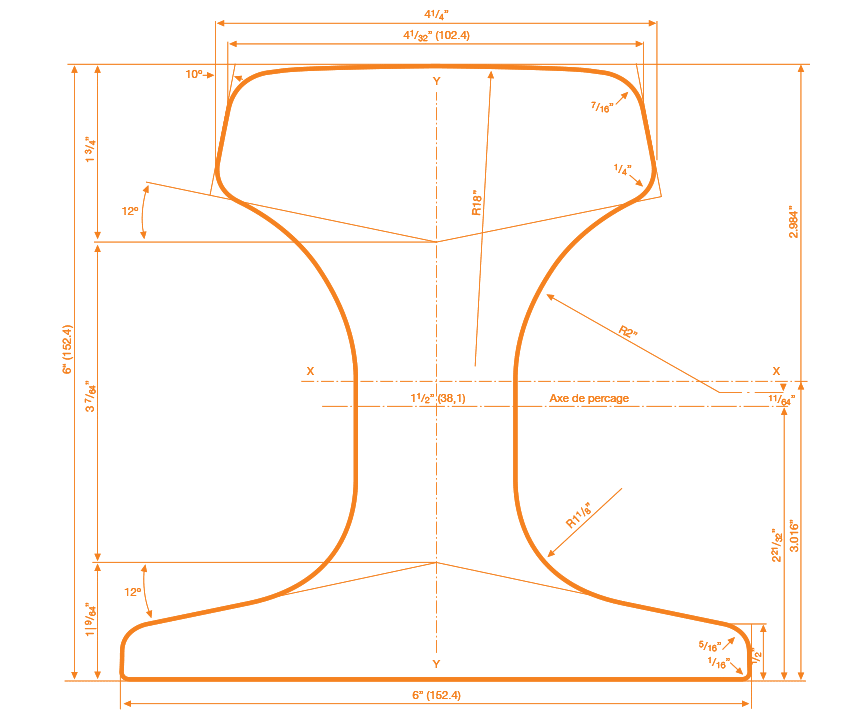

MRS87B/CR17586.8152.4108152.438.112000 – 24000
MRS87A86.8152.4101.6152.434.96000 – 12000

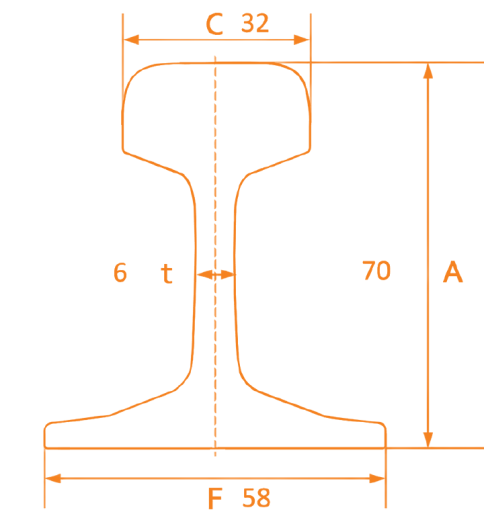

S1010.0703258612000
S1212.1970366586000 – 12000

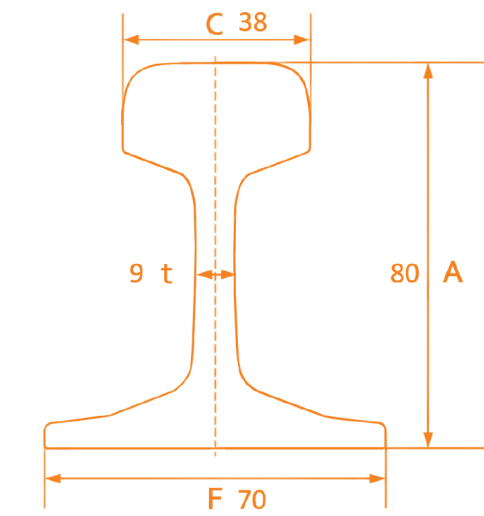

S1414.0803870912000

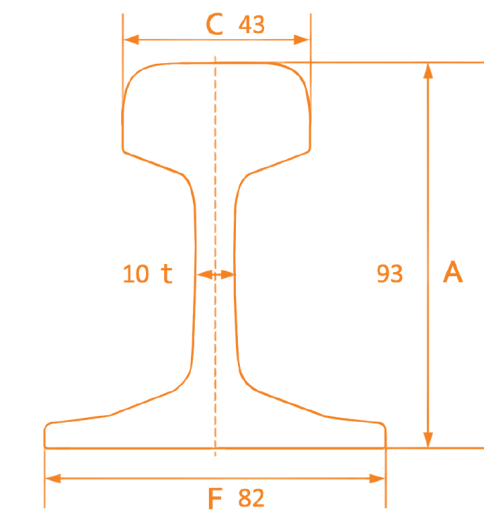

S1818.39343821012000

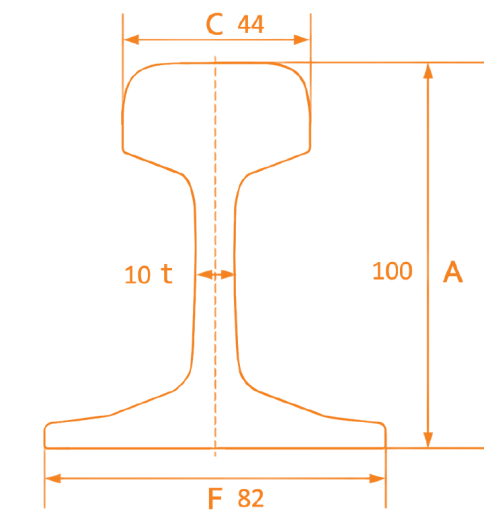

S2019.810044821012000

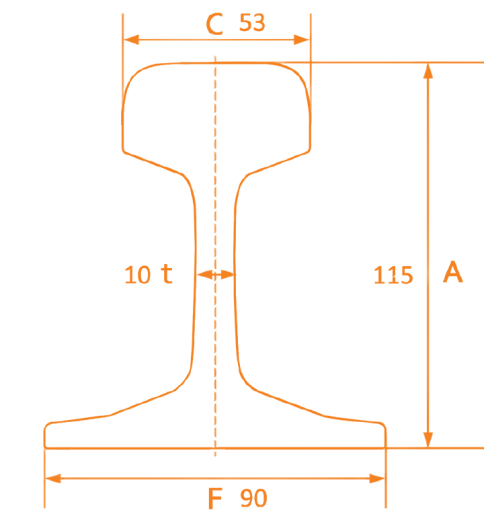

S2424.411553901012000

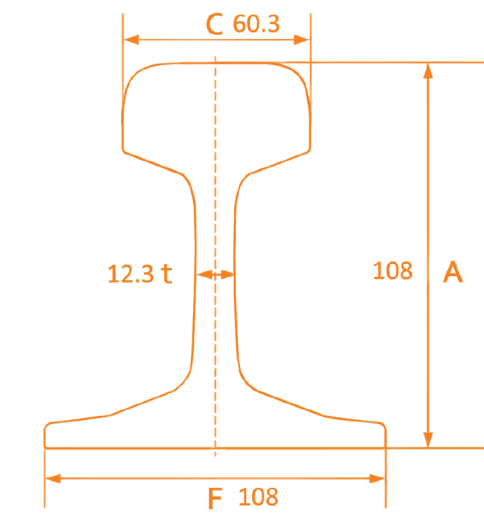

S3030.0310860.310812.312000
S4949.39159701401612000 – 36000
S6060.2117274.315016.512000 – 25000
UIC3332.999380402012000
